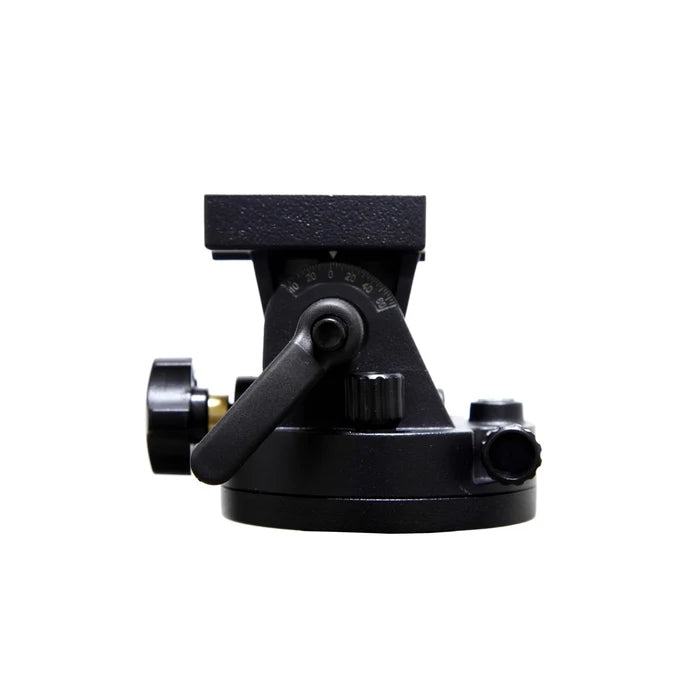

iOptron Adjustable AZ/EQ Base

Adjustable alt-azimuth base for SkyTrackerTM Pro and SkyGyiderTM Pro mounts. Allows for repositioning during polar alignment while a mount is attached to a tripod. The base has a built-in bubble level. It accepts Vixen-type dovetail bar.

The altitude adjustment range is from -30º ~ 65º, so you can mount your device/scope on the either side for better balance.

Features

  • All metal construction
  • Accept Vixen-type dovetail bar (not included)
  • Dual direction mounting
  • -30º ~ 65º in latitude adjustment
  • ±5° in azimuth adjustment
  • Φ80 mm mounting base
  • Attaches to a camera tripod with 3/8” or 1/4” threads (optional 3/8"-1/4" thread converter needed)

Technical Specifications

Dovetail saddle Vixen-type
Mounting base diameter Φ80 mm
Mounting base socket 3/8” threaded socket
Latitude adjustment range -30º ~ 65º
Azimuth adjustment range ±5º
Level indicator Level bubble
Warranty One year limited

In the Box

  • Adjustable AZ/EQ Base (3327)
