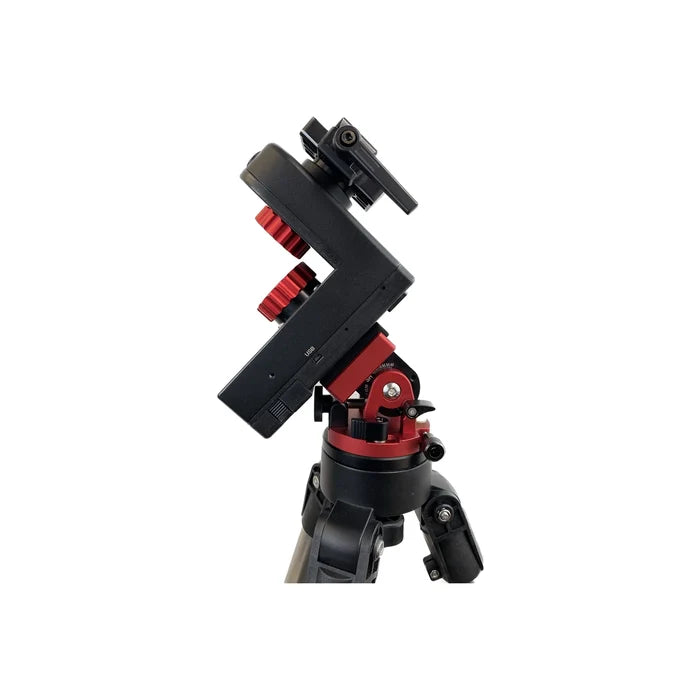

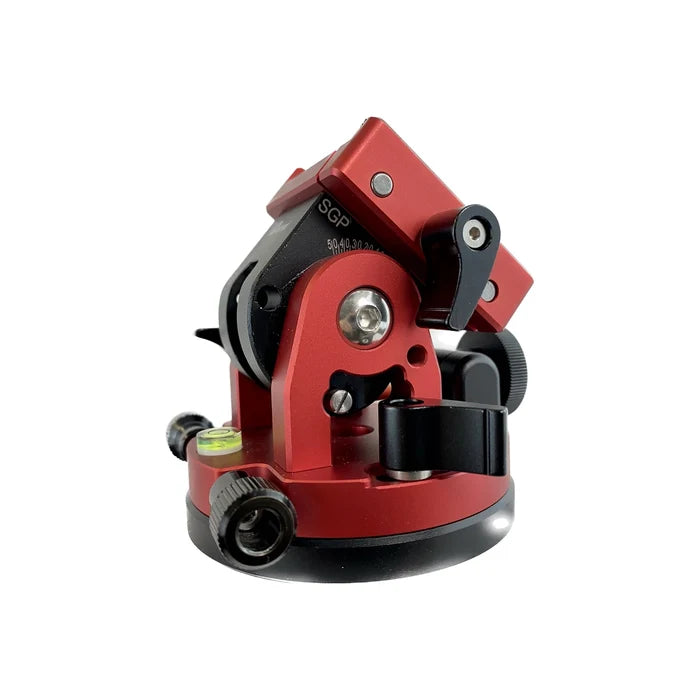

iOptron Precision Adjustable AZ/EQ Base

Precision adjustable equatorial base for SkyHunter^TM, GOTO mount, SkyGuider Pro and SkyTracker Pro mounts. The base has a built-in bubble level. It accepts Vixen-type dovetail bar. The altitude adjustment range is from 0º ~ 90º.

Features

• CNC machined, all metal construction
• Accept Vixen-type dovetail bar (not included)
• 0º ~ 90º in latitude adjustment
• ±5° in azimuth adjustment
• Φ80 mm mounting base
• Attaches to a camera tripod with 3/8” or 1/4” threads (optional 3/8"-1/4" thread converter needed)

Technical Specifications

	Dovetail saddle Vixen-type Mounting base diameter Φ80 mm Mounting base socket 3/8” threaded socket Latitude adjustment range 0º ~ 90º Azimuth adjustment range ±5º Level indicator Level bubble Warranty One year limited

In the Box

• iOptron Precision Adjustable AZ/EQ Base

Warranty & Manuals

iOptron 2-Year Warranty
